Open Carousels


The WÄLLER open carousel has a capacity of approximately 2 metres of files per tier.

Tiers, which rotate silently on maintenance-free ball bearings, are adjustable to any height. Standard setting is for size A4 documents.

Open carouesls are 800mm in diameter when filled with size A4 files.





Open Carousels with Gliders

105S

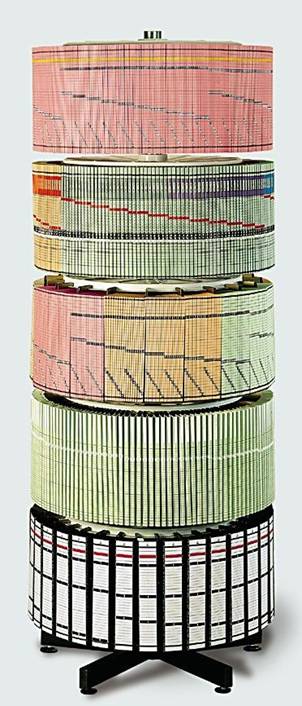

5-tier Carousel 105 S
with five suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~2,020mm
Net weight 34kg

Ref. No. 00670105










1-tier Carousel 101 S
with one suspension tier

Stationary, steel base with gliders
Adjustable for height
height ~500mm
Net weight 14kg

Ref. No. 00670101

2-tier Carousel 102 S
with two suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~925mm
Net weight 19kg

Ref. No. 00670102


3-tier Carousel 103 S
with three suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~1,290mm
Net weight 24kg

Ref. No. 00670103


4-tier Carousel 104 S
with four suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~1,660mm
Net weight 29kg

Ref. No. 00670104


6-tier Carousel 106 S
with six suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~2,370mm
Net weight 39kg

Ref. No. 00670106





Open Carousels with Castors

103F

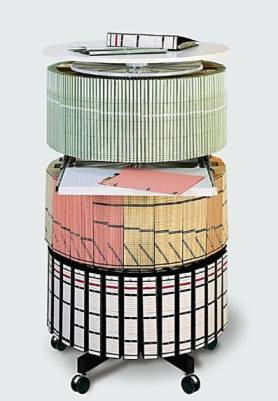

3-tier Carousel 103 F
with three suspension tiers

(Pull-out reference shelf and wooden dust cover on request)
Movable, steel base with castors
Height 1,350mm
Net weight 25kg

Ref. No. 00676103










Accessories

Ablageplatte

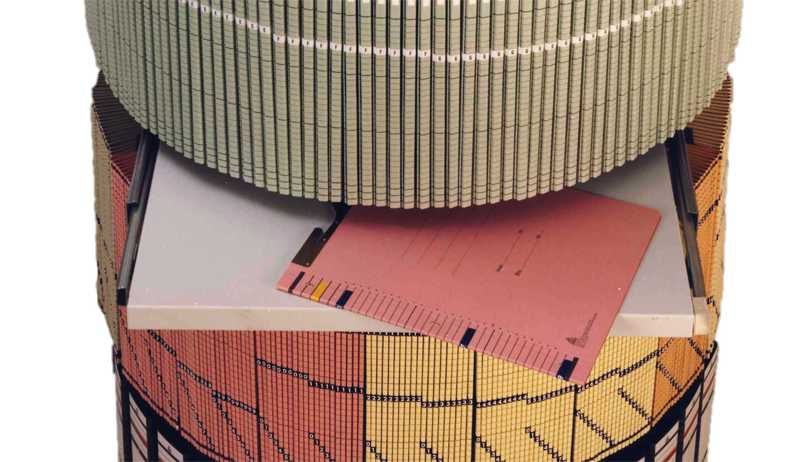

Steel Pull-out Reference Shelf
45mm high, 606mm wide, 592mm deep
Maximum load 25kg
Net weight 6,6kg

Ref. No. M 535

Aufsteckstange

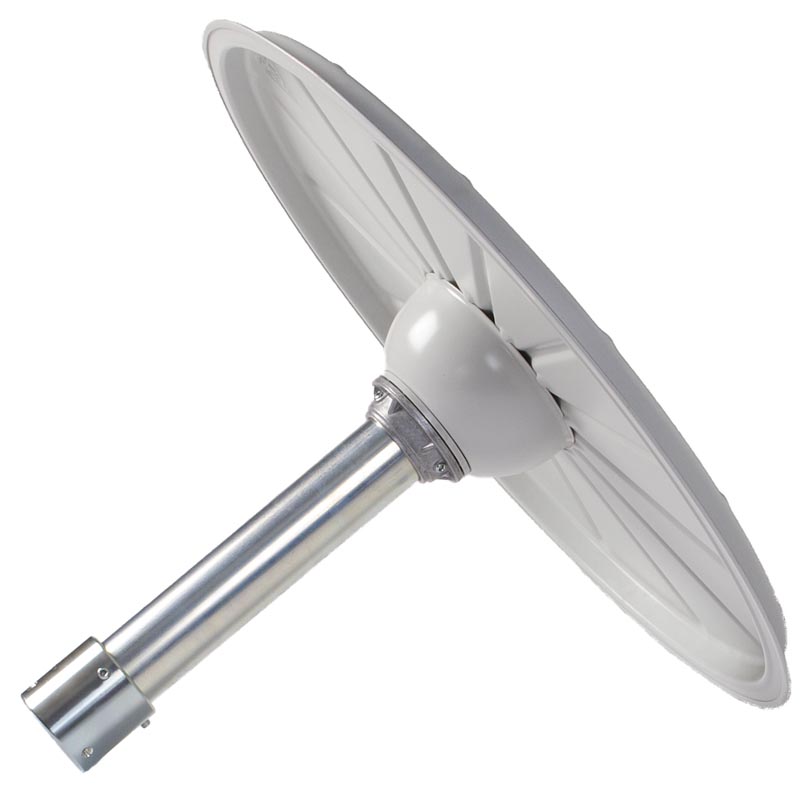

Additional Extension Tier
Pole included

Ref. No. 09678101

Abdeckscheibe

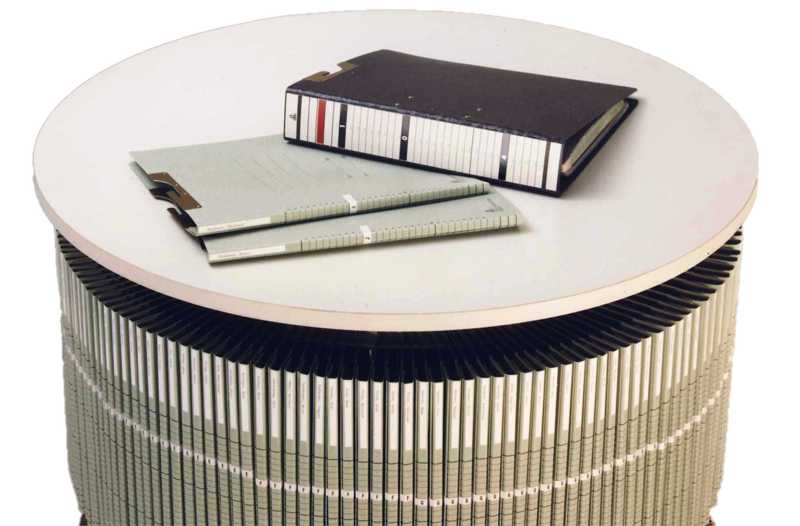

Wooden Dust Cover
Ref. No. 09679000




Suspension Tier
Ref. No. 09679200

Shelf Tier
Ref. No. 09679100






Open Carousels for X-Ray Filing


The WÄLLER carousel for x-ray filing has a capacity of approximately 2 metres of files per tier.

X-ray carousels are stationary. They are available with 1 to 5 tiers, which rotate silently on ball bearings and can be turned individually in both directions. Tiers are adjustable to any height, though there is a 405mm minimum distance required due to the metal separating plates (see picture below). For filing standard x-ray files (435mm tall, containing x-rays size 430 x 400mm), the distance between tiers is 490mm.

When filled with x-ray files type Rö 12 or Rök 12, the carousel has a diameter of approximately 1,040mm.

103R

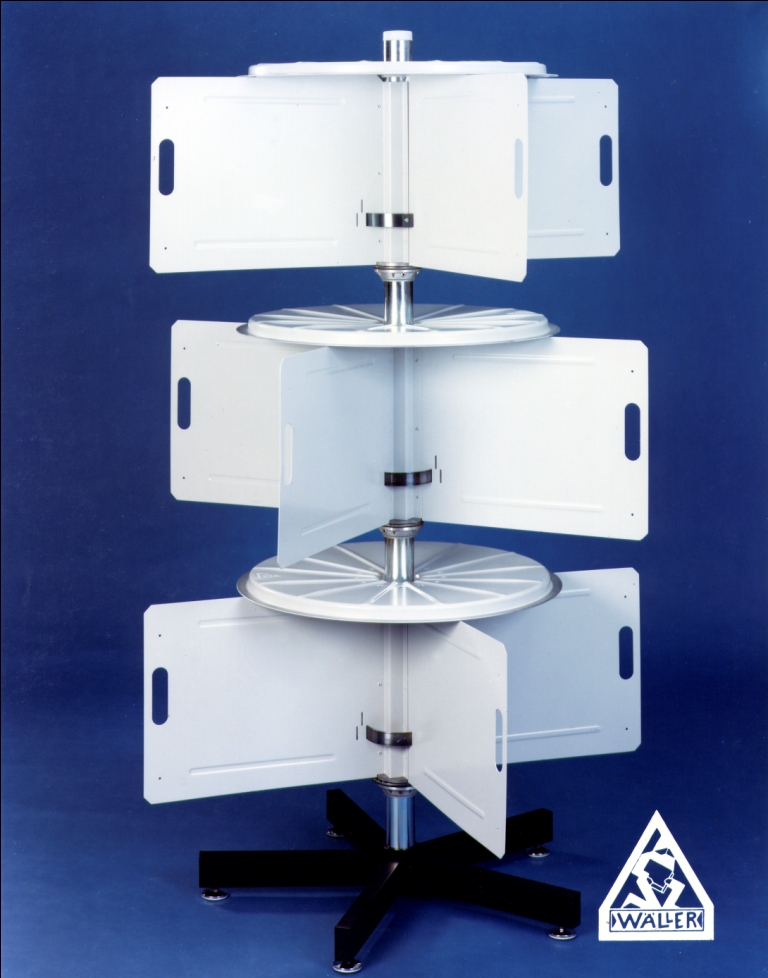

X-Ray Carousel 103 R
with three suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~1,655mm
Net weight 48kg

Ref. No. 00674103




Accessories available:
Turning handle, straight (Ref. No. M 540)
Turning handle, bent (Ref. No. M 541)



X-Ray Carousel 101 R
with one suspension tier

Stationary, steel base with gliders
Adjustable for height
Height ~675mm
Net weight 20kg

Ref. No. 00674101

X-Ray Carousel 102 R
with two suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~1,165mm
Net weight 34kg

Ref. No. 00674102


X-Ray Carousel 104 R
with four suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~2,145mm
Net weight 62kg

Ref. No. 00674104


X-Ray Carousel 105 R
with five suspension tiers

Stationary, steel base with gliders
Adjustable for height
Height ~2,635mm
Net weight 76kg

Ref. No. 00674105

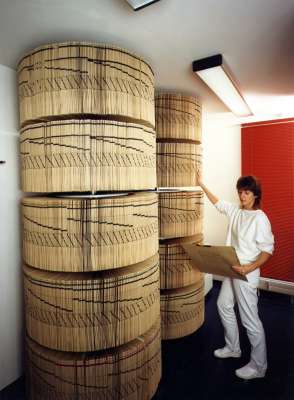

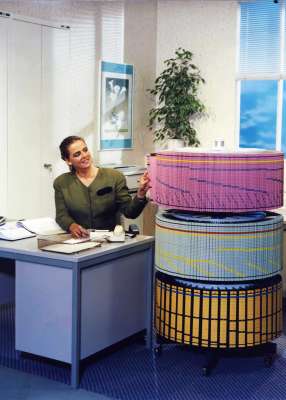

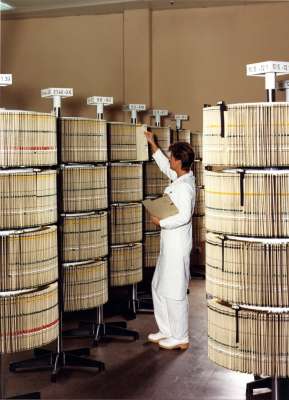

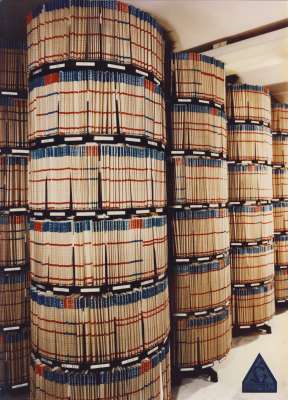

Some Examples from Real Life...

We manufacture special designs on request. Please tell us what you need!
